Using Device Search on AOS-CX

In the MultiEdit mode, the Contextual Search Engine allows you to filter a set of AOS-CX switches using search queries. The search queries can contain one or more search terms in the format, label:value. For example: model:6300F, where model is the label and 6300F is the value. When a search query contains a list of terms, by default, all terms are required to match. For example, the search query "model:8400 current-firmware:10.04.0001" will return only 8400 switches running 10.04.0001 firmware. The filtered switch details are displayed in the Devices table.

The search queries can contain the following information:

• Device attributes—Attributes that denote the device details such as the model and current-firmware.
• Wildcard characters—Asterisk (*) and question mark (?) are allowed in search queries.
• Boolean operators—For complex queries, you can use the boolean operators AND, OR, NOT, + (the plus sign), and - (the minus sign).
• Grouping characters—Multiple search terms with logical operators can be grouped using parenthesis ().

You must use quotes (" ") for any strings with spaces and for the default, running-config, and startup-config search. A default search is specified by entering quoted text instead of a label:value search term. The default search runs the search against the running configurations of the devices. For example, entering "ntp server172.16.0.100" searches for that string in the running configuration of all managed devices in the MultiEdit mode. Multiple search terms can be used in a query and can be combined using logical operators.

Searching for Devices

To access Contextual Search Engine and perform search, complete the following steps:

1. In the Network Operations app, set the filter to a group containing at least one switch. The dashboard context for the group is displayed.
2. Under Manage, click Devices > Switches.
3. Click the Config icon to view the switch configuration dashboard.
4. Slide the MultiEdit toggle switch to the on position to enable MultiEdit mode. The Devices table displays the list of devices in the selected group.
5. Hover over the values in the table cells to view the labels that can be used in the search query. For example, if you hover over a cell in the Status column, a pop-up is displayed with the label that can be used in the search term and an example.
6. In the Contextual Search Engine field, enter a search query, and click Search & Filter to filter a set of switches. The Devices table lists the devices that match the search query.

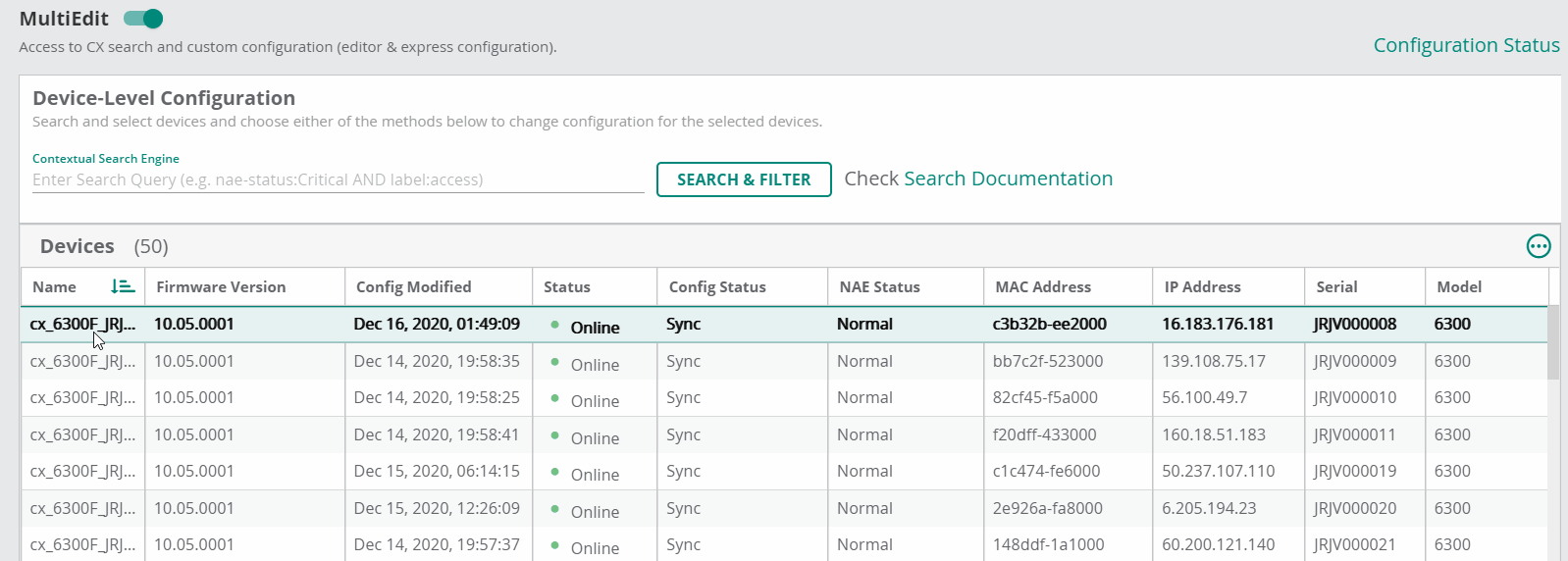

Figure 1  Device Search

Device Attributes

The following table lists the field names that can be used in the search query as device attributes.

Table 1: List of Field Names

Field Name	Definition	Example
active-image	Active image location	active-image:primary
chassis	Name of the chassis if available	chassis:1
config-auto-commit	Configuration auto commit state	config-auto-commit:On config-auto-commit:Off
config-failure-reasons	Reason for configuration failure when the configuration-state is "Not in sync"	config-failure-reasons:”Connection error” config-failure-reasons:"Configuration conflicts" config-failure-reasons:"Internal error" config-failure-reasons:"Modified outside Central" config-failure-reasons:"Initial group config pending" config-failure-reasons:"Pushing config" config-failure-reasons:"Connection error with pending changes" config-failure-reasons:"Auto commit off"
configuration-state	Configuration sync state	configuration-state:Sync
current-firmware	Current firmware version	current-firmware:10.02.0001
default-image	Default image location	default-image:secondary
fabric-card	Name of the fabric cards, if available	fabric-card:1\/1
firmware-version	Firmware version on the device	firmware-version:FL.10.1
hw-serial	Serial number of attached hardware	hw-serial:TW0989W
ip-address	Management IP address	ip-address:172.16.0.100
label	Label assigned to the device	label:Floor1
last-sync-time	Last time when configuration in central and device are in sync	last-sync-time:2020-08-27 last-sync-time:2020-08-27T19 last-sync-time:2020-08-27T19:01:20Z last-sync-time:[2020-08-27T19:01:20Z TO *] last-sync-time:[2020-08-27 TO 2020-08-28] last-sync-time:[2020-08-27T20 TO 2020-08-27T23] last-sync-time:[2020-08-27T19:00:00 TO 2020-08-27T23:00:00] last-sync-time:[2020-08-27T11:30:00Z TO 2020-08-27T23:00:00Z]
line-card	Name of the line cards, if available	line-card:1\/1
local-override	Device local override is enabled or not	local-override:Yes local-override:No
mac-address	Base MACMedia Access Control. A MAC address is a unique identifier assigned to network interfaces for communications on a network. address	mac-address:e7c7dc-32f000
management-module	Name of the management module, if available	management-module:1\/1
manufacturer	Manufacturer name	manufacturer:Aruba
model	Model number	model:6300F
nae-status	NAE status of the switch	nae-status:normal
name	The devices user-defined name	name:cx_6300F_ERIA000001
part-number	Product names of the device and attached hardware	part-number:JL635A
power-supply	Name of the power-supply, if available	power-supply:1\/1
primary-version	Primary image version	primary-version:GL.10.11
product-name	Product names of the device and attached hardware	product-name:"8325 Mgmt Mod"
product-number	Product number of the device	product-number:8325
running-config	Contents of the running configuration (this is the default search field)	running-config:”ospf”
running-config-modified	Date and time of latest running configuration change	running-config-modified:2020-08-27 running-config-modified:2020-08-27T19 running-config-modified:2020-08-27T19:01:20Z running-config-modified:[2020-08-27T19:01:20Z TO *] running-config-modified:[2020-08-27 TO 2020-08-28] running-config-modified:[2020-08-27T20 TO 2020-08-27T23] running-config-modified:[2020-08-27T19:00:00 TO 2020-08-27T23:00:00] running-config-modified:[2020-08-27T11:30:00Z TO 2020-08-27T23:00:00Z]
running-deployed-by	User who deployed running configuration	running-deployed-by:system
secondary-version	Secondary image version	secondary-version:GL.10.11
serial	Serial number	serial:SGIA000001
site	Site assigned to the device	site:”Santa Clara”
startup-config	Contents of the start-up configuration	startup-config:”ntp server 192.168.0.7”
startup-config-modified	Date and time of latest start-up configuration change	startup-config-modified:2020-08-27 startup-config-modified:2020-08-27T19 startup-config-modified:2020-08-27T19:01:20Z startup-config-modified:[2020-08-27T19:01:20Z TO *] startup-config-modified:[2020-08-27 TO 2020-08-28] startup-config-modified:[2020-08-27T20 TO 2020-08-27T23] startup-config-modified:[2020-08-27T19:00:00 TO 2020-08-27T23:00:00] startup-config-modified:[2020-08-27T11:30:00Z TO 2020-08-27T23:00:00Z]
startup-deployed-by	User who deployed start-up configuration	startup-deployed-by:system
status	Device status	status:Online status:Offline
system-contact	SNMPSimple Network Management Protocol. SNMP is a TCP/IP standard protocol for managing devices on IP networks. Devices that typically support SNMP include routers, switches, servers, workstations, printers, modem racks, and more. It is used mostly in network management systems to monitor network-attached devices for conditions that warrant administrative attention.  system contact	system-contact:JohnSmith
system-location	SNMP system location	system-location:Zurich

Wildcard Characters

Wildcard characters are used in search queries to match one or more other characters. The valid wildcard characters are asterisk (*) and question mark (?).

Use asterisk (*) to match multiple characters in a search query. For example, the search query Serial:SG* will return all the devices starting with SG, such as SG0010223, SG0110224, SG1110225, and so on.

Use question mark (?) to match a single character in a search query . For example, the search query Serial:SG001022? will return all the devices starting with SG001022 series replacing the last digit, such as SG0010221, SG0010222, SG0010223, and so on.

Reserved Characters

Reserved characters are used for performing operations in search queries. For example, the plus (+) and minus (-) symbols are used as Boolean operators. Parenthesis () is used to group search queries. Reserved characters include + - && || ! ( ) { } [ ] ^ " ~ * ? : \.

If reserved characters appear in searches, then they must be preceded by an escape character such as a backslash (\). If the search terms are enclosed in quotes, then you need not add a backslash (\) before the reserved characters. For example, system-location:"santaclara(office)". If the search terms are not enclosed in quotes, then you must add a backslash (\) before the reserved characters. For example, system-location:santaclara\(office\).

Operators

The following table lists the operators that can be used in search queries.

Table 2: List of Operators

Operator	Example	Result
AND	model:8400 AND current-firmware:10.04.000	Returns all 8400 model switches running the 10.04.000 firmware version.
OR	model:8400 OR current-firmware:10.04.000	Returns all 8400 model switches, all the switches running 10.04.000 firmware version, or both.
NOT	model:8400 NOT current-firmware:10.04.000	Returns all 8400 model switches, but not switches running 10.04.000 firmware version.
+ (Includes)	model:8400 + running-config:"access-list ip hvac_segmentation"	Returns all 8400 model switches that contain the ACLAccess Control List. ACL is a common way of restricting certain types of traffic on a physical port. named "hvac_segmentation" in their running configuration.
- (Excludes)	model:8400 - running-config:"access-list ip hvac_segmentation"	Returns 8400 model switches that do not have the ACL named "hvac_segmentation" in their running configuration.
( ) (Grouping)	(model:8400 OR model:6300) AND NOT current-firmware:10.04.0001	Returns all 8400 and 6300 model switches that are not running firmware version 10.04.000.

Sample Queries

The following table lists some sample queries that can be used as search queries.

Table 3: List of Sample Queries

Query	Result
"ospf"	Switches that contain the string "ospf" in their running configuration file.
model:8400 current-firmware:10.04.0001	Model 8400 switches running firmware version 10.04.0001.
model:8400 -current-firmware:10.04.0001	All 8400 switches that are not running version 10.04.0001.
(model:8400 OR model:6300) AND NOT current-firmware:10.04.0001	All 8400 and 6300 switches that are not running version 10.04.0001.
model:6300 -running-config:"access-list ip hvac_segmentation"	Model 6300 switches that do not have the ACL named "hvac_segmentation" in their running configuration.
hostname-AUS-05-.*	Devices with a hostname matching the regular expression. For example, in a deployment where host names are encoded as ( <site>-<building>-<floor>-<number>).
site:Aruba*	Devices with the Ssite name starting with Aruba.
